Powder Coating M/C

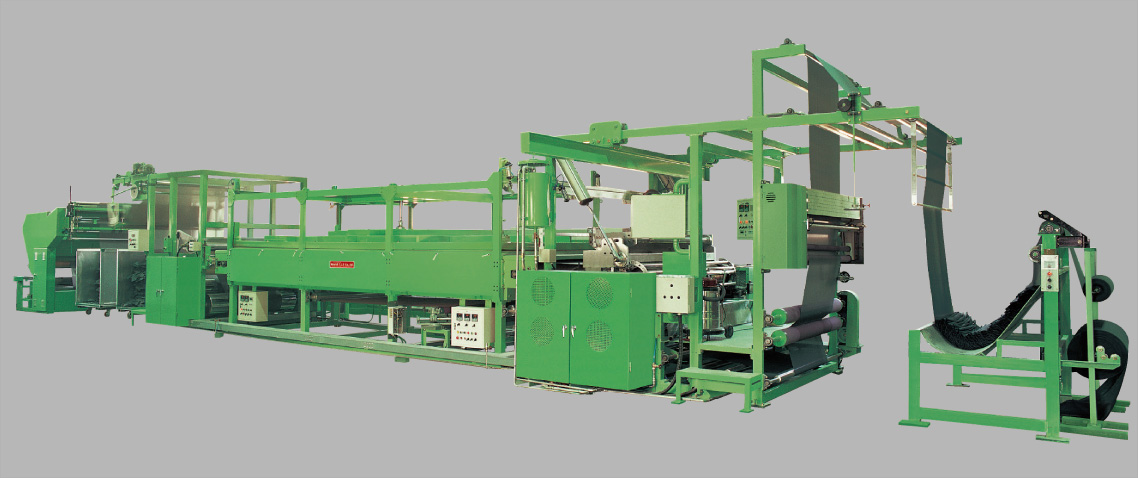

WF-2002

Features & Application

  • Various kinds of interlining with polyester, nylon, cotton and non-woven, such as high functional dot type fusible interlining, light & soft interlining and the interlinings washable & dry-cleanable
  • Available to use various kinds of powder
  • Easy to replace dot roller
  • Chemicals to use : Polyethylene, Polyamide, Polyurethane, and Polyester etc

Specification

Model WF-2002
Roller Width 1,800(Dot roll 1,900)mm
Working Width MAX.1,600mm
Machine Speed 5 ~ 50m/min
Heating Source Electric & Thermo oil
Gelling Tunnel Electric heater 4M : 54Kw (9KW×6EA) , 6M : 81Kw (9KW×9EA)
Electric Capacity 4M : 199Kw (Heating Roll : 90Kw) , 6M : 225Kw (Heating Roll : 90Kw)
Required Floor Space 4M : 2,800mmW×13.370mmL×4,300mmH, 6M : 2,800mmW×15.370mmL×4,300mmH

※ The specifications are subject to change without any prior notice for quality improvement.

* Move left and right

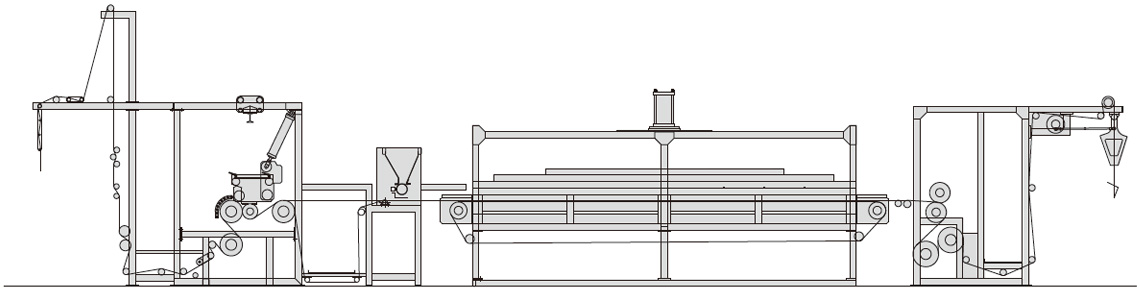

Drawing

WF-2002
