Heating Fusion Laminating M/C

WF-2010

Features & Application

  • Laminating materials based on thermal deformation by direct heat
  • Car upholstery fabrics, Furniture, Bags, Clothes, Blinds, Electric cable, Ships, Home appliances, Water-proof Film for thermal deformation
  • Thermoplastic hotmelt film, Oleffin, PES, PA, PO, TPU, EVA, Non-woven products, Powder coated products

Specification

Model WF-2011FL, WF-2010FL
Roller Width 1,200~2,400mm , 2~5 boll type
Working Speed Min.5m/min~Max.50m/min
Electric Capacity 45~200kw(No. of Roller : based on 1~4)
Temperature Max. 230℃ (Electric heater, Thermo oil type), Max. 300℃ (Electric heater)
Driving Method Inverter

※ The specifications are subject to change without any prior notice for quality improvement.

* Move left and right

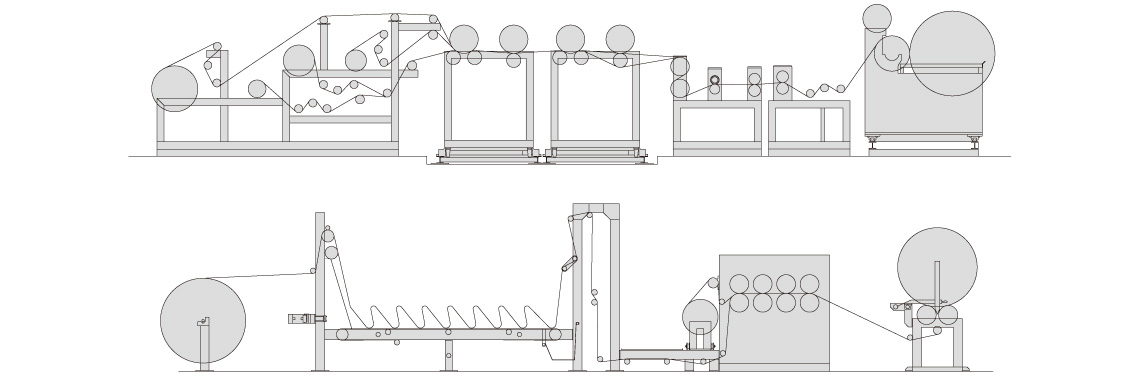

Drawing

WF-2010
