Dry Laminating M/C

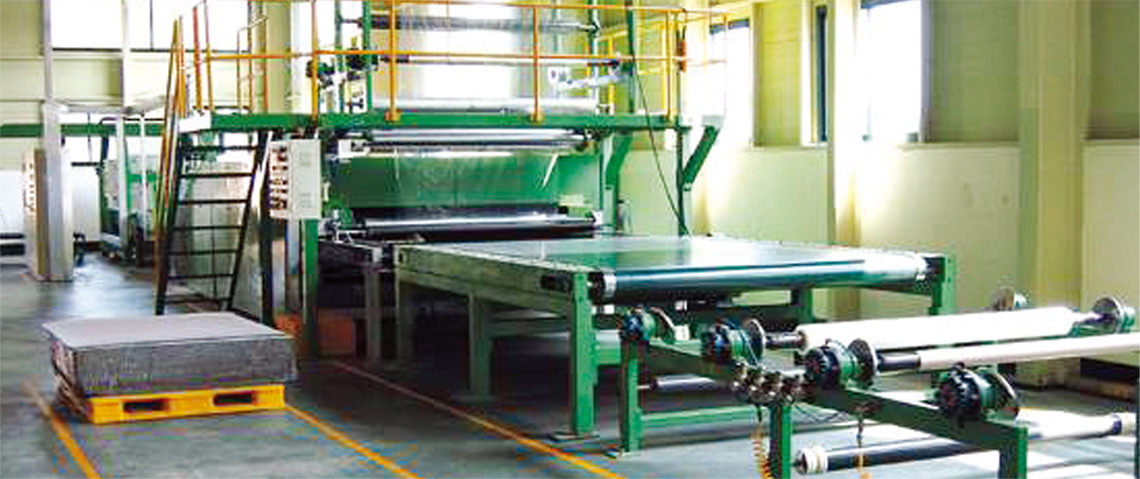

WF-2005DL

Features & Application

  • Laminating materials based on thermal deformation by direct heat (2~5 Layer)
  • Interlining(Powder coating laminating), Automotive interior materials, Industrial materials, Various kinds of thermoplastic hot melt film bonding, Laminating materials in form of sheet
  • Working Temperature : MAX 230℃

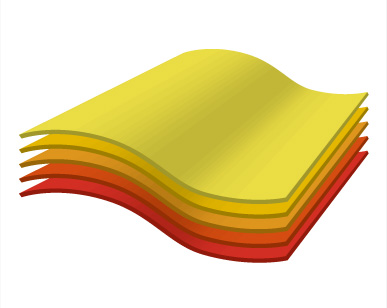

5 layers

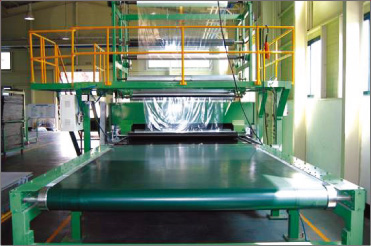

  • Burner & Main Laminating Unit

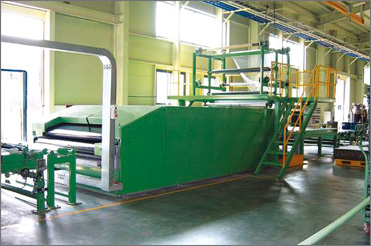

  • Burner

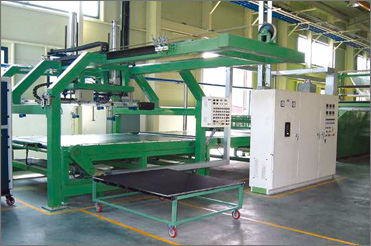

  • Back Unit

Specification

Model WF-2005DL
Belt Width
Working Width
Working Speed
Electric Capacity
Gelling Tunnel
Cooling Zone
Chamber No.
Chamber Temperature
Take out Device
Electric Heater 		1900mm
1800mm
5~15m/min
155kw
137Kw(3chamber standerd)
1EA(option)
3EA
250℃
(option)
137Kw(3chamber standerd)

※ The specifications are subject to change without any prior notice for quality improvement.

* Move left and right

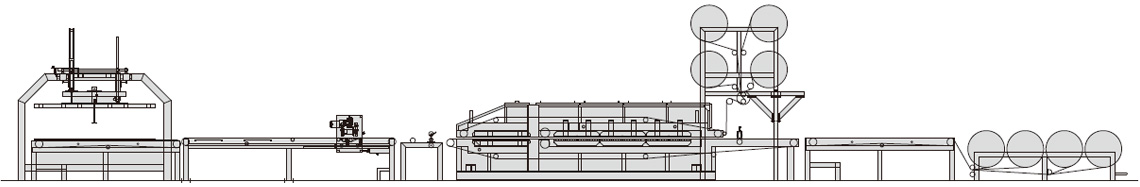

Drawing

WF-2005DL
