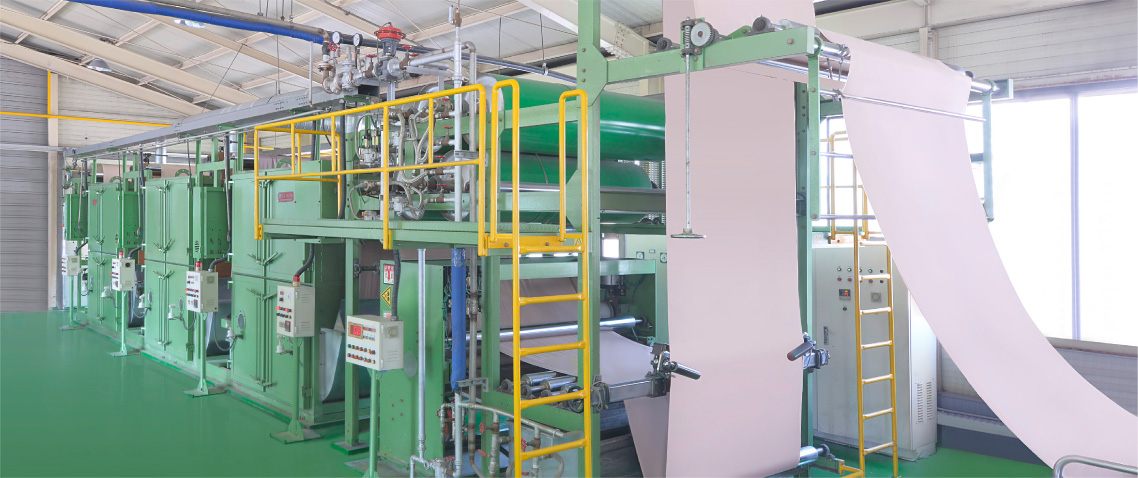

Soft Dryer

WF-SOF207

Features & Application

  • Softening effect and Shrinkage effect
  • Preventing crease/wrinkle by open-width process
  • Easy for maintenance and cleaning based on self-assembly especially for damper, fan and nozzle
  • Excellent durability : Most core parts inside chambers are made of SUS
  • Excellent fabric balancing by expanding device & centering device among chambers
  • Sufficient hot air volume and hot air pressure → suitable for both light weight fabric and heavy weight fabric
  • Available for denim, towel, blended fabric, artificial leather, coated fabric, PU bonded fabric, velboa, corduroy and non-woven fabric etc
  • Available to remove foreign materials from fabrics after raising & shearing

Specification

Model WF-SOF207
Chamber 2~5 chamber
Dimension   L 19,605
                     W/H W : 3,400 / H : 3,900
Heat Consumption Max480,000kcal/hr
Electric Capacity 60~160kw/h
Heating Source Gas, Thermo-Oil, Steam
Processing Entrance Mangle Cylinder Dryer Dry Chamber Plaiting Down

※ The specifications are subject to change without any prior notice for quality improvement.

* Move left and right

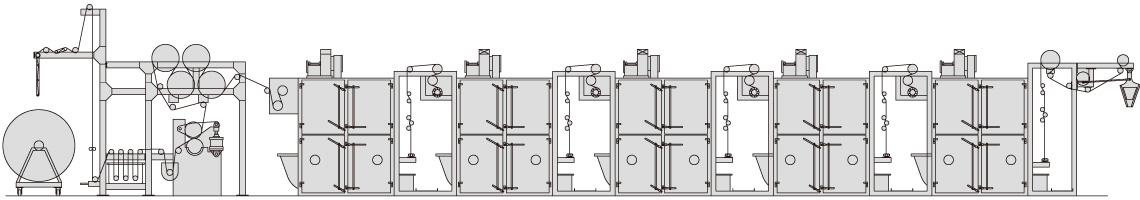

Drawing

WF-SOF207
