Flame Laminating M/C (Single)
HOME Products Flame Laminating M/C (Single)

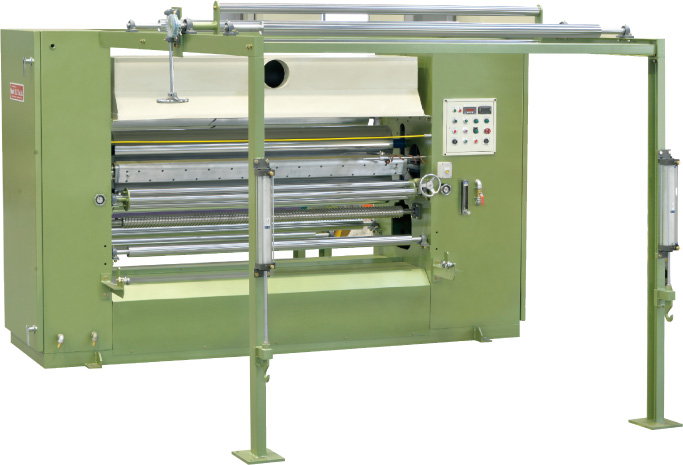

Flame Laminating M/C (Single)

WF-2005SS

Features & Application

  • Easy for Sampling
  • Less space by compact design
  • Car seat, Car headliner(3-Layer Laminating), Carpet, Furniture, Medical cloth(Moquette), Non-woven fabric, Artificial leather, Normal garment, Bags and Gas singed textile etc

Specification

Model WF-2005
Winding dia Max. Ø1,200
Working width Max. 1,800~2,400mm
Working speed Max.50m/min
Accumulator capacity About 28m
Electric capacity 45kw
Required floor space L24,344 x W 5,425 x H6,340mm
Burner system Gas pressure(Butan) 2,800 ~3,500mmaq
Gas consumption 9kg/h
Air/Gas ratio V= 3㎥ : 1㎥
Burner Flame Tempurature 1,200℃

※ The specifications are subject to change without any prior notice for quality improvement.

* Move left and right

Drawing

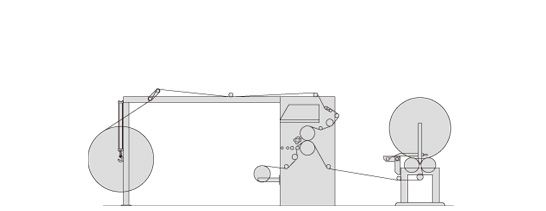

WF-2005SS (Two layer type)

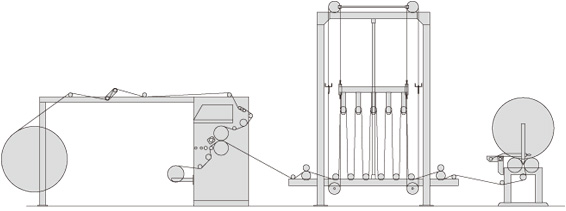

WF-2005SA (Two layer type)
