Flame Laminating M/C (Double)
HOME Products Flame Laminating M/C (Double)

Flame Laminating M/C (Double)

WF-2005

Features & Application

  • Possible to laminate more than 2 kinds of material like normal fabric, non-woven fabric and paper with sponge(=urethane foam) by using thermoplastic resin
  • The machine briefly consists of sponge feeding unit & conveyor, fabric feeding unit & conveyor, burner & main laminating unit, accumulator, cutting unit and winding unit.
  • Easy to control the feeding of material on laminating
  • Comfortable bending after lamination
  • Minimizing tension on the fabric by accumulator after lamination
  • High productivity by high production speed
  • Car seat, Car headliner(3-Layer Laminating), Carpet, Furniture, Medical cloth(Moquette), Non-woven fabric, Artificial leather, Normal garment, Bags and Gas singed textile etc

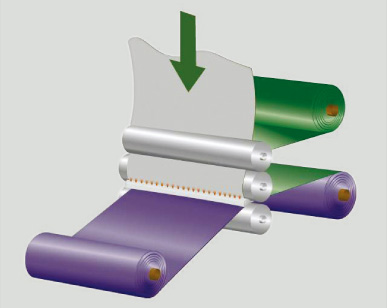

Flame Laminating Process

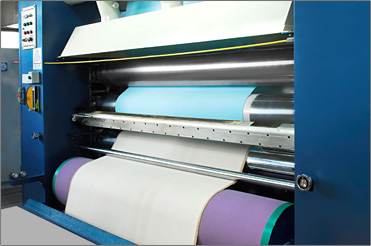

  • Burner & Main Laminating Unit

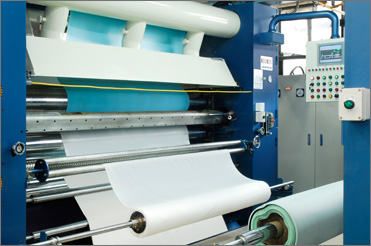

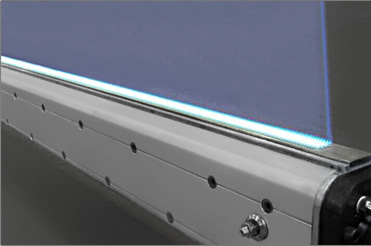

  • Burner

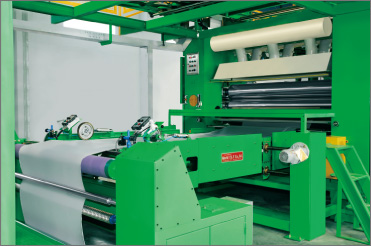

  • Back Unit

Specification

Model WF-2005
Winding Dia
Rolling Width
Working Speed
Accumulator Capacity
Electric Capacity 		Max. Ø1200
Max 1,800 ~ 2,400mm
Max. 50m/min
About 28m
50kw
Burner System
Gas Pressure
Gas Consumption
Air/Gas Ratio
Burner Temperature 		2,800 ~ 3,500mmaq
7kg/h / 4kg
V=3㎥~1㎥
1200℃

※ The specifications are subject to change without any prior notice for quality improvement.

* Move left and right

Flame Laminating M/C

WF-2005P

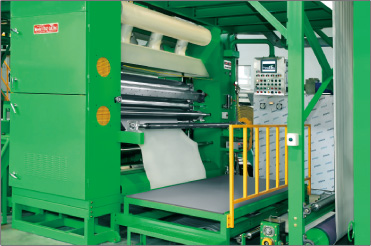

  • Burner & Main Laminating Unit

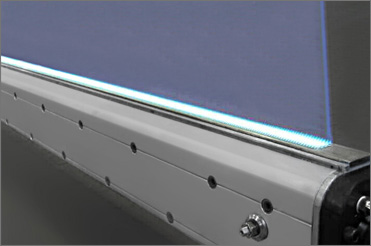

  • Burner

  • Pin Unit

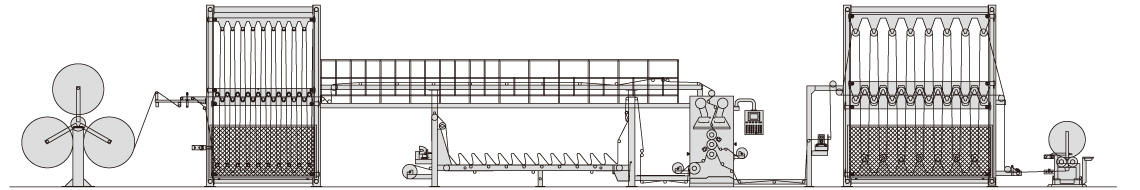

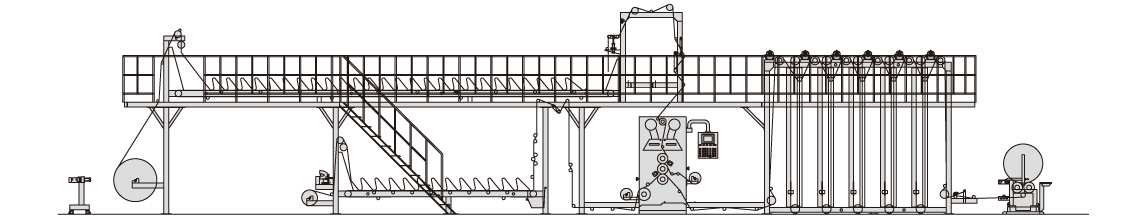

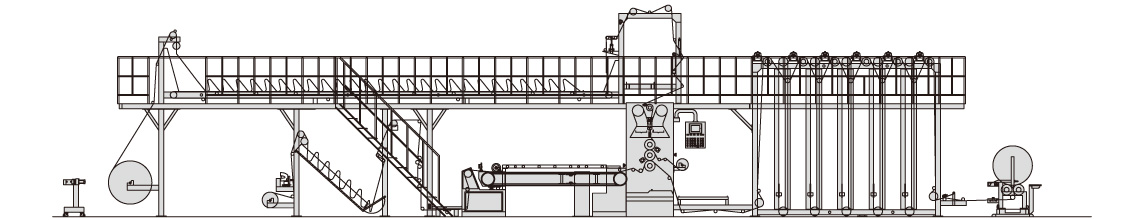

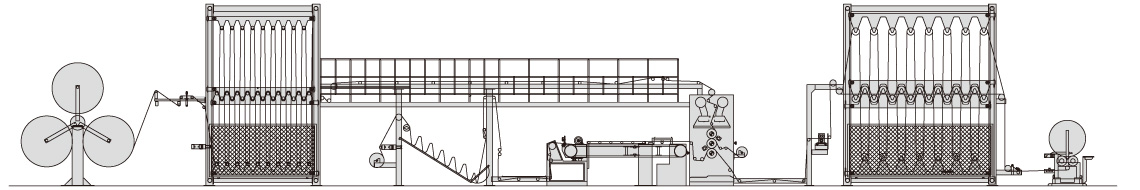

Drawing

WF-2005W

WF-2005WP

WF-2005

WF-2005P
