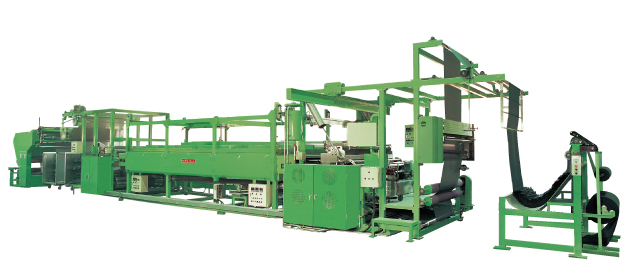

 PRODUCT > WF-2002 |
|
 |
| |
|
|
- Various kinds of interlining with polyester, nylon, cotton and non-woven, such as high functional dot type fusible interlining, light & soft interlining and the interlinings washable & dry-cleanable
- Available to use various kinds of powder
- Easy to replace dot roller
- Chemicals to use : Polyethylene, Polyamide, Polyurethane, and Polyester etc
|
 |
|
| |
|
|
|
| Roller width |
1,800 (Dot roll 1,900)mm |
| Working width |
Working Width Max. 1,600mm |
| Heating source |
5~50m/min |
| Heating source |
Electric & Thermo oil |
Geling tunnel
electric heater |
4M : 54Kw (9KW x 6Ea)
6M : 81Kw (9KW x 9Ea) |
Electric
Consumption |
4M : 199Kw (Heating roll : 90Kw)
6M : 225Kw (Heating roll : 90kw) |

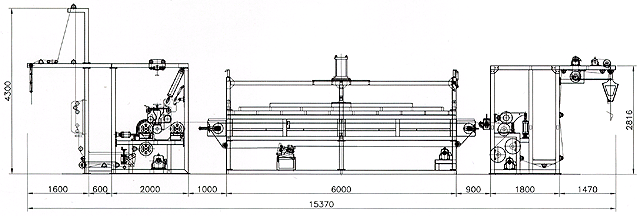

Dimension
(R/O:1,800mm) |
4M : 2,800mmW x 13,370mmL x 4,300mmH
6M : 2,800mmW x 15,370mmL x 4,300mmH |
| * The specifications are subject to change without any prior notice for quality improvement |
|
| |
|
|
 |
| |
|
|
 |
|
|
|
|
|
