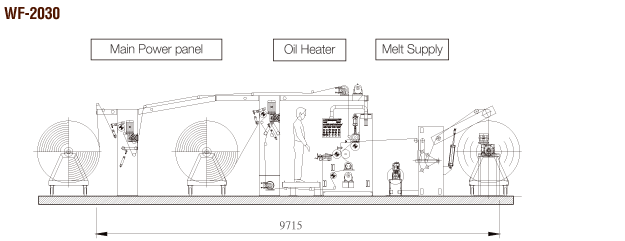

 PRODUCT > WF-2030 |
|
 |
| Front |
| |
 |
| Back |
| |
 |
|
 |
|
 |
| Hot Oil Heater |
|
Hot Melt Applicator |
|
Roll Cleaner |
|
| |
|
|
- Thermosetting Resin (=Moisture Stiffening Resin) : PUR
- Thermoplastic Resin : EVA(ethylene-vinyl acetate), PA(Polyamide) - OPTION
- Environment-Friendly as Solvent Free
- Less space by compact design
- No need of dedicated drying device
- No need of auxiliary device like Boiler
- Excellent bonding effect
- Available to laminate with PTFE, TPU, ePTFE and PU film etc
- Sportswear, Home textile, Medical cloth, Shoes, Automotive interior materials, Furniture, Carpet and Non-woven textile etc
|
|
|
|
| |
 |
| |
|
| |
|
|
|
| Roller width |
2,000 ~ 2,500mm |
| Working width |
Max.1,800 ~ 2,400mm |
| Working speed |
Min. 5m/min ~ Max. 50m/min |
| Electric capacity |
90kw |
| Coating method |
Dot roll / Gravure |
| Driving Method |
Inverter |
| * The specifications are subject to change without any prior notice for quality improvement |
|
|
|
|
 |
|
|
|
|
|
